Brand Name : Toshiba Matsushita
Model Number : LT057AC47200
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : LT057AC47200
Diagonal Size : 5.7"
Resolution : 640(RGB)×480, VGA 141PPI
Pixel Format : RGB Vertical Stripe
Brightness : 350 cd/m² (Typ.)
Color Depth : 262K
Application : Industrial
Signal Interface : LVDS (1 ch, 6/8-bit), 20 pins Connector
LT057AC47200 LVDS LCD Screen Display 5.7 inch LCD panel
LT057AC47200 LCD Panel Product details :
| Brand | Toshiba Mobile Display |
| Model P/N | LT057AC47200 |
| Diagonal Size | 5.7" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | 120.0(W)×91.2(H) mm |
| Outline Size | 144(W)×104.6(H)×12.8(D) mm |
| Surface | - |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 60/60/55/45 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 15/25 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.2M |
| Lamp Type | WLED, 100K hours, With LED Driver |
| Frequency | - |
| Touch Screen | Without |
| Panel Weight | 215g (Typ.) |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
| LT057AC47200 LVDS LCD Screen Display 5.7 inch LCD panel | |
LT057AC47200 LCD Panel Shipping and Package :

LT057AC47200 LCD Panel FAQ :
Q: How long will I receive my goods of lcd LT057AC47200 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: When will my order LT057AC47200 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
|
|

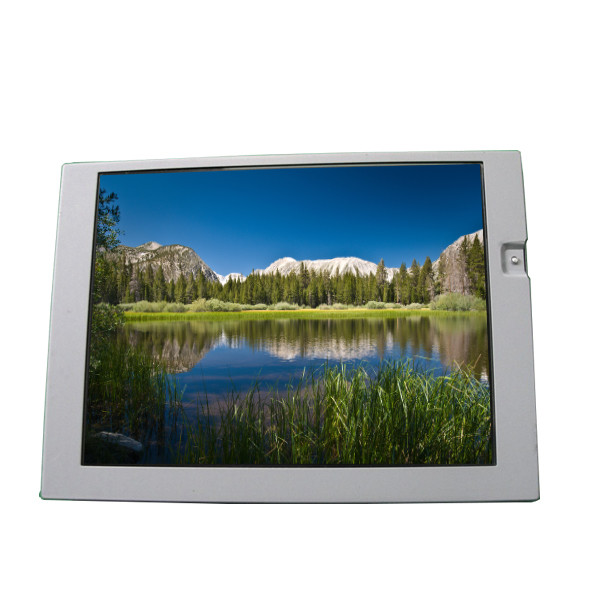

LT057AC47200 LVDS LCD Screen Display 5.7 inch LCD panel Images |
